Create simple a project

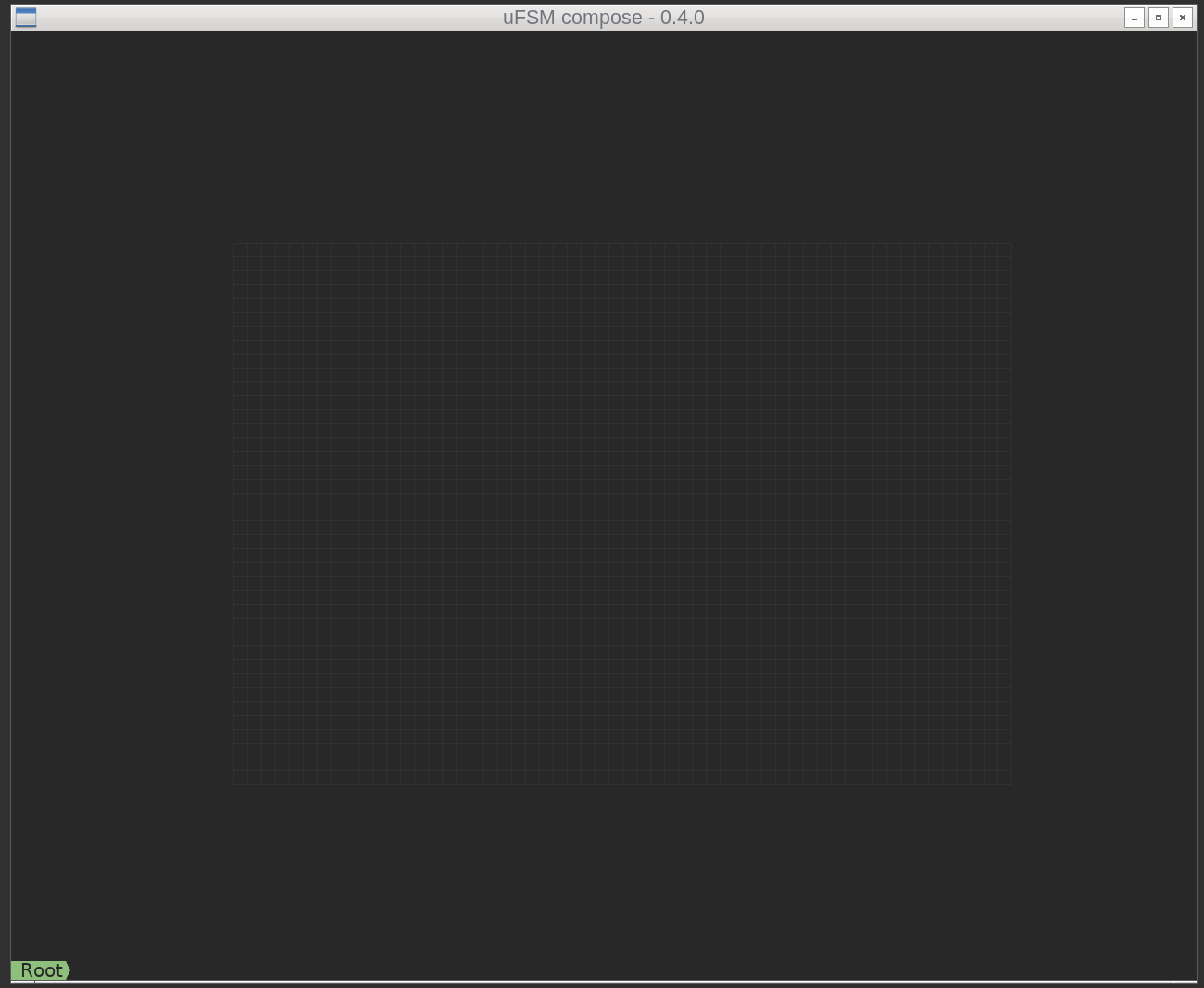

Open the compose editor by running ‘ufsm-compose’.

../_images/compose_main_window.png

A good start is to open the project settings menu and set a project name and maybe adjust the canvas size. The project settings menu is opened by pressing ‘p’

../_images/compose_project_settings.png

Create a model by adding normal states ‘a-s’ (Add state). Set the state names by pressing ‘e-n’ (Edit - name).

See Editor commands for a more comprehensive list of commands.

../_images/compose_demo_project.png

Translate model to code:

$ ufsm-generate c led.ufsm .

This command generates led.c and led.h which contains the state machine.

Example code:

#include <stdio.h>
#include "led.h"

void led_on(void *context)
{
    printf("LED ON\n");
}

void led_off(void *context)
{
    printf("LED OFF\n");
}

int main(int argc, char **argv)
{
    struct led_machine m;

    led_init(&m, NULL);

    led_process(&m, eToggle);
    led_process(&m, eToggle);
    led_process(&m, eToggle);
    led_process(&m, eToggle);
    led_process(&m, eToggle);

    return 0;
}

Build the example:

gcc simple.c led.c -o led

Source code: examples/simple
